      Collector

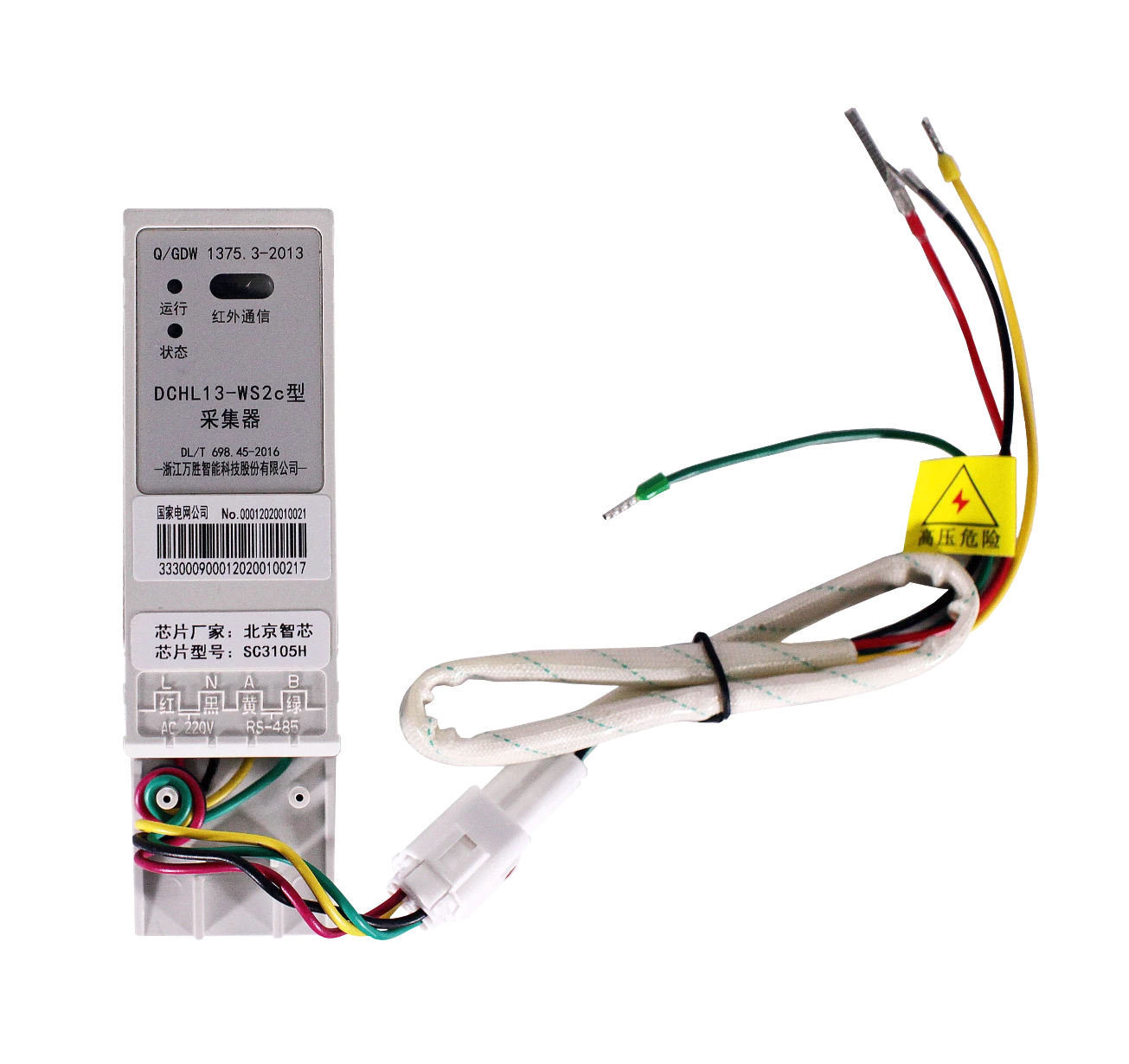

      Type II：DCHL13-WS2c
      It is a component of the low voltage meter reading system. It collects data from non-PLC meters through RS485 and uploads it to the DCU through PLC.
      Main functions and characteristics
      Complete the conversion function of smart metering data for RS-485 communication mode.
      Technical parameter
      • Standards
        Q/GDW10375.3-2019, DL/T 698.45-2017, Q/GDW10376.2-2019
      • Voltage
        220V
      • Frequency
        50Hz
      • Extreme operating temperature range
        -40℃~+70℃
      • Power consumption
        <3W, 5VA
      • Electric meter protocol
        DL/T 698.45-2020, DL/T 698.45-2013, DL/T 645-2007
      • Data transmission interface
        RS-485
      Size Description

      100mm x 40mm x 50mm
